The NL series narrow linewidth diode lasers are RealLight’s self-developed wavelength-stabilized lasers, utilizing wavelength-locking technique with volume Bragging gratings (VBG) which forces the center wavelength tolerance to be ±0.5nm and the optical bandwidth to be less than 0.1nm. In addition to provide narrow spectral bandwidth, these lasers also deliver high output power and excellent stability at 532nm, 638nm, 784nm, 785nm, 808nm, 830nm, 976nm or 1064nm output wavelengths, with power ranging from 100mW to 800mW. Dual-wavelength laser with compact design is also the featured laser product of NL series. User-friendly solutions like 14-pin butterfly package with fiber pigtail, 14-pin butterfly package with collimated open beam, integrated OEM module or turn-key system are available for these spectrum stabilized lasers. The NL series lasers are ideal light sources for a large variety of applications, including Raman spectroscopy, biomedicine, laser-induced fluorescence (LIF) and pumping.
| Center Wavelength（nm） | 532 | 638 | 785 | 808 | 830 | 976 | 1064 | ||
| Optical | CW Output Power / Pop (mW) | 100 | 350 | 350 | 500 | 600 | 600 | 800 | 800 |
| Wavelength Tolerance (nm) | ±0.5 | ||||||||
| Spectral Width / △λ (nm) | <0.05 | <0.1 | <0.1 | <0.1 | <0.3 | <0.1 | <0.3 | <0.1 | |
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.01 | ||||||||
| Temperature Drift of Current / △λ/△Iop (nm/A) | 0.05 | ||||||||
| Package Type | 14SBTF | ||
| Center Wavelength（nm） | 785 | 1064 | |
| Optical | CW Output Power / Pop (mW) | 100 | 150 |
| Wavelength Tolerance (nm) | ±0.5 | ±0.5 | |
| Spectral Width / △λ (nm) | <0.1 | ||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | ≤0.01 | ||
| Temperature Drift of Current / △λ/△Iop (nm/A) | 0.05 | ||

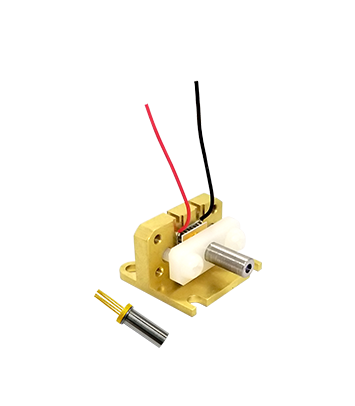

| Package Type | 04BCK | 04BCK-TEC | |||
| Center Wavelength（nm） | 785 | 1064 | 785 | 1064 | |
| Optical | CW Output Power / Pop (mW) | 100 | 150 | 100 | 150 |
| Wavelength Tolerance (nm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | |
| Spectral Width / △λ (nm) | <0.1 | ||||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | ≤0.01 | ||||
| Package Type | R2T | ||||||
| Center Wavelength of LD1/LD2（nm） | 532/785 | 784/785 | 785/1064 | ||||
| Optical | CW Output Power / Pop (mW) | 100/500 | 500/500 | 500/800 | |||
| Wavelength Tolerance (nm) | ±0.5 | ||||||
| Spectral Width / △λ (nm) | ＜0.1 | ||||||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.01 | ||||||
| Center Wavelength（nm） | 532* | 638 | 785 | 808 | 830 | 976 | 1064 | ||
| Optical | CW Output Power / Pop (mW) | 100 | 600 | 350 | 500 | 600 | 600 | 800 | 800 |
| Wavelength Tolerance (nm) | ±0.5 | ||||||||
| Spectral Width / △λ (nm) | <0.1 | <0.1 | <0.1 | <0.1 | <0.3 | <0.1 | <0.3 | <0.1 | |
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.01 | ||||||||
| Temperature Drift of Current / △λ/△Iop (nm/A) | 0.05 | ||||||||
| Center Wavelength（nm） | 532* | 638 | 785 | 808 | 830 | 976 | 1064 | |
| Optical | CW Output Power / Pop (mW) | 100 | 600 | 500 | 600 | 600 | 800 | 800 |
| Wavelength Tolerance (nm) | ±0.5 | |||||||
| Spectral Width / △λ (nm) | <0.1 | <0.1 | <0.1 | <0.3 | <0.1 | <0.3 | <0.1 | |
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.01 | |||||||
| Temperature Drift of Current / △λ/△Iop (nm/A) | 0.05 | 0.06 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
| Center Wavelength (nm) | 532* | 638 | 785 | 808 | 830 | 976 | 1064 |
| Output Power (mW) | 100 | 600 | 500 | 600 | 600 | 800 | 800 |
| Wavelength Tolerance (nm) | ±0.5 | ||||||
| Linewidth (nm) | <0.05 | <0.1 | <0.1 | <0.3 | <0.1 | <0.3 | <0.1 |
| Wavelength Stability | ±5pm@4h Typ. | ||||||
| Optical Parameters | |||
| Center Wavelength (nm) | 532/785 | 784/785 | 785/1064 |
| Output Power (mW) | 100/500 | 500/500 | 500/800 |
| Wavelength Tolerance (nm) | ±0.5 (each wavelength) | ||
| Linewidth, each wavelength (nm) | <0.1 | ||
| Wavelength Stability | ±5 pm @4h Typ. | ||
| Optical Parameters | ||||||
| Center Wavelength (nm) | 532/785 | 784/785 | 785/1064 | |||
| Output Power (mW) | 100 | 500 | 500 | 500 | 500 | 800 |
| Wavelength Tolerance (nm) | ±0.5 (each wavelength) | |||||
| Linewidth, each wavelength (nm) | <0.1 | |||||
| Wavelength Stability | ±7pm@4h Typ. | |||||
| Center Wavelength (nm) | 532* | 638 | 785 | 808 | 830 | 976 | 1064 | ||
| Output Power (mW) | 100 | 600 | 500 | 600 | 600 | 800 | 800 | ||
| Wavelength Tolerance (nm) | ±0.5 | ||||||||
| Linewidth (nm) | ＜0.05 | ＜0.1 | ＜0.1 | ＜0.3 | ＜0.1 | ＜0.3 | ＜0.1 | ||
| Wavelength Stability | ±7pm@4h Typ. | ||||||||
