RealLight developed, designed, and manufactured a series of diode lasers include quasi-wavelength diode lasers, narrow linewidth diode lasers, and diode laser stacks. With wavelength range covers from 405nm to 1064nm, the multi-function diode lasers are mainly used in laser dentistry, laser therapy, veterinary medicine and other laser medical industries.The narrow linewidth diode lasers utilize wavelength-locking technique with volume Bragging gratings (VBG), are preferred for Raman spectroscopy and other analytical applications.The diode laser stacks with multiple wavelengths, FAC collimation, and wide temperature range are ideally suited for solid-state laser pumping.Single-emitter diode lasers,fiber arrays or other diode lasers and systems can be used in laser processing industry.

RealStable® 14SBTF Fiber Pigtailed Diode Laser Components

532nm,638nm,785nm,808nm,830nm,981nm,1064nm

Package Type		14SBTF (Fiber Pigtailed)
Center Wavelength（nm）		532*	638	785	808	830	981	1064
Optical	CW Output Power / Pop (mW)	100	500	600	600	600	800	800
	Wavelength Tolerance (nm)	±0.5
	Spectral Width / △λ (nm)	<0.15	<0.1	<0.1	<0.3	<0.1	<0.3	<0.1
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.01
	Temperature Drift of Current / △λ/△Iop (nm/A)	0.05	0.06	0.05	0.05	0.05	0.05	0.05
	SMSR	–	>35	>40

RealStable® R5M-Pro Diode Laser Components

650nm,808nm,980nm,1064nm,1470nm

Package Type		R5M-Pro
		3-wavelength			3-wavelength
Center Wavelength（nm）		650	808	980/1064	650	980	1470
Optical	CW Output Power / Pop（W）	0.5	15	20/20	0.5	15	15
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<6
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® R5M Diode Laser Components

650nm,808nm,910nm,980nm,1064nm

Package Type		R5M
Package Type		4-wavelength				5-wavelength
Center Wavelength（nm）		650	808	980	1064	650	808	910	980	1064
Optical	CW Output Power / Pop（W）	0.5	9	10	10	0.5	9	10	10	10
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<6
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® 11RTR Diode Laser Components

808nm,940nm,976nm,980nm,1064nm

Package Type		11RTR
Center Wavelength（nm）		808	940/976/980	1064
Optical	CW Output Power / Pop（W）	9	15	10
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<4
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.3

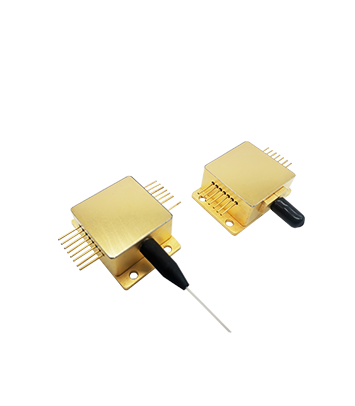

RealStable® 14HHL/15HHL Diode Laser Components

450nm,808nm,940nm,976nm,980nm,1064nm,1470nm

Package Type		14HHL					15HHL
Center Wavelength（nm）		450	808	940/976/980	1064	1470	808	940/976/980	1064	1470
Optical	CW Output Power / Pop（W）	4	9	15	10	5	9	15	10	5
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<4
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® AWM Series Diode Laser System

650nm,808nm,910nm,980nm,1064nm,1470nm

Center Wavelength (nm)		5-wavelength
Center Wavelength (nm)		650	808	910	980	1064
Optical	CW Output Power / Pop (W)	0.5	8	10	10	10
	Wavelength Tolerance (nm)	±10
	Spectral Width / △λ (nm)	<6

RealStable® 14SBTF Free Space Diode Laser Components

532nm,638nm,785nm,808nm,830nm,981nm,1064nm

Package Type		14SBTF (Free Space)
Center Wavelength（nm）		532*	638	785	808	830	981	1064
Optical	CW Output Power / Pop (mW)	100	500	600	600	600	800	800
	Wavelength Tolerance (nm)	±0.5
	Spectral Width / △λ (nm)	<0.15	<0.1	<0.1	<0.3	<0.1	<0.3	<0.1
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.01
	Temperature Drift of Current / △λ/△Iop (nm/A)	0.05
	SMSR	–	>35	>40

RealStable® 14SBTF Single Mode Free Space Diode Laser Components

785nm,1064nm

Center Wavelength（nm）		785	1064
Optical	CW Output Power / Pop (mW)	100	300
	Wavelength Tolerance (nm)	±0.5
	Spectral Width / △λ (nm)	0.1
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	≤0.01
	Temperature Drift of Current / △λ/△Iop (nm/A)	0.05

RealStable® 08LTR Free Space Diode Laser Components

638nm,785nm,808nm,830nm,981nm,1064nm

Center Wavelength（nm）		638	785	808	830	981	1064
Optical	CW Output Power / Pop (mW)	500	600	600	600	800	800
	Wavelength Tolerance (nm)	±0.5
	Spectral Width / △λ (nm)	<0.1	<0.1	<0.3	<0.1	<0.3	<0.1
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.01
	Temperature Drift of Current / △λ/△Iop (nm/A)	0.05

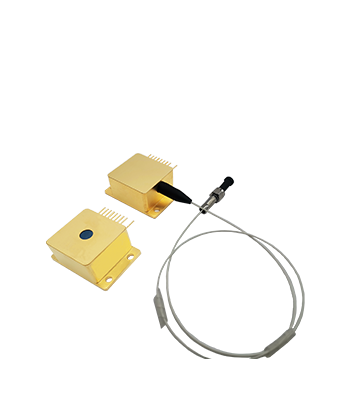

RealStable® 09HHL Diode Laser Components

450nm,638nm,783nm,803nm,808nm,9XXnm,1064nm

Package Type		09HHL-T （Free Space）		09HHL-T （Fiber Pigtailed）
Center Wavelength（nm）		808		450	638	783	803	808	9XX	1064
Optical	CW Output Power / Pop（W）	3	10	4	1	8.5	8	8.5	15	10
	Wavelength Tolerance (nm)	±3, ±5, ±10
	Spectral Width / △λ (nm)	<4
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.3

RealStable® R4D Diode Laser Components

808nm,980nm,1064nm,1470nm

Package Type		R4D
Center Wavelength（nm）		808	980	1064	1470
Optical	CW Output Power / Pop（W）	30	30	30	20
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<6
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® R3MH Diode Laser Components

450nm,650nm,808nm,980nm,1064nm

Package Type		R3MH
		3-wavelength
Center Wavelength（nm）		450	650	808/980/1064
Optical	CW Output Power / Pop（W）	4	0.5	10
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<6
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® R3M Diode Laser Components

650nm,808nm,980nm,1064nm

Package Type		R3M
		3-wavelength
Center Wavelength（nm）		650	808	980/1064
Optical	CW Output Power / Pop（W）	0.5	9	15/10
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<6
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® R3F Diode Laser Components

808nm,980nm,1064nm

Package Type		R3F
Center Wavelength（nm）		808	980	1064
Optical	CW Output Power / Pop（W）	20	30	30
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<6
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® 08BULT Diode Laser Components

650nm,808nm,940nm,980nm,1064nm,1470nm

Package Type		08BULT
Center Wavelength（nm）		650	808	940	980	1064	1470
Optical	CW Output Power / Pop（W）	1	2	3	3	2	1
	Wavelength Tolerance（nm）	±10
	Spectral Width / △λ（nm）	<4
	Temperature Drift of Wavelength / △λ/△T（nm/℃）	0.3

RealStable® 14BTF Diode Laser Components

405nm,450nm,520nm

Center Wavelength（nm）		405	450	520
Optical	CW Output Power / Pop (mW)	100	100	100
	Wavelength Tolerance (nm)	±5	±10	±10
	Spectral Width / △λ (nm)	＜2	＜2	＜3

RealStable® 02HBCK Diode Laser Components

808nm,940nm,980nm,9XXnm,1064nm

Package Type		02HBCK Fiber Pigtailed
Center Wavelength（nm）		808	940/980	1064
Optical	CW Output Power / Pop（W）	8	10	10
	Wavelength Tolerance (nm)	±3,±10
	Spectral Width / △λ (nm)	<4
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.3
	Optional Feedback Protection Function	>40dB@1030-1070nm
	Fiber Core/Cladding Diameter Dcore（μm）	105/125,200/220
	Fiber Length / L (cm)	100±10（customizable）
	Numerical Aperture / NA	0.22
	Connector	FC/PC,SMA905, bare ferrule

RealStable® 03BCK Diode Laser Components

520nm,638nm,650nm

Center Wavelength（nm）		520		638	650
Optical	CW Output Power / Pop (mW)(1)	2~10	60	150	130	2~10
	Wavelength Tolerance (nm)	±10
	Spectral Width / △λ (nm)	＜6
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.3

RealStable® R2T Diode Laser Components

784nm+785nm,785nm+1064nm

Package Type		R2T
Center Wavelength of LD1/LD2（nm）		784.5/785.5	785/1064
Optical	CW Output Power / Pop (mW)	600/600	500/800
	Wavelength Tolerance (nm)	±0.5
	Spectral Width / △λ (nm)	<0.1
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	0.01

RealStable® 04BCK Diode Laser Components

785nm

Package Type		04BCK	04BCK-TEC
Center Wavelength（nm）		785	785
Optical	CW Output Power / Pop (mW)	100
	Wavelength Tolerance (nm)	±0.5
	Spectral Width / △λ (nm)	<0.1
	Temperature Drift of Wavelength / △λ/△T (nm/℃)	≤0.01

RealStable® NLSO Series Single Mode Narrow Linewidth Laser

405nm,450nm,520nm,638nm,650nm,785nm,1064nm

Center Wavelength (nm)	405	450	520	638	650	785	1064
Output Power (mW)	100	100	100	100	100	100	300
Wavelength Tolerance (nm)	±5	±10				±0.5
Linewidth (nm)	<2	<2	<3	<3	<3	<0.1

RealStable® NLMO Series Multi-mode Narrow Linewidth Laser

532nm,638nm,785nm,808nm,830nm,981nm,1064nm

Optical Parameters
Center Wavelength (nm)	532*	638	785	808	830	981	1064
Output Power (mW)	100	500	600	600	600	800	800
Wavelength Tolerance (nm)	±0.5
Linewidth (nm)	<0.15	<0.1	<0.1	<0.3	<0.1	<0.3	<0.1

RealStable® NLMO Series Dual-wavelength Narrow Linewidth Laser

784nm+785nm,785nm+1064nm

Optical Parameters
Center Wavelength (nm)	784/785		785/1064
Output Power (mW)	500	500	500	800
Wavelength Tolerance (nm)	±0.5 (each wavelength)
Linewidth, each wavelength (nm)	<0.1
Wavelength Stability	±7pm@4h Typ.

RealStable® NLS Series Single mode Narrow Linewidth Laser

405nm,450nm,520nm,638nm,650nm,785nm,1064nm

Center Wavelength (nm)	405	450	520	638	650	785	1064
Output Power (mW)	100	100	100	100	100	100	300
Wavelength Tolerance (nm)	±5	±10				±0.5
Linewidth (nm)	<3					<0.1

RealStable® NLM Series Multi-mode Narrow Linewidth Laser

532nm,638nm,785nm,808nm,830nm,981nm,1064nm

Center Wavelength (nm)	532*	638	785	808	830	981	1064
Output Power (mW)	100	500	600	600	600	800	800
Wavelength Tolerance (nm)	±0.5
Linewidth (nm)	<0.15	<0.1	<0.1	<0.3	<0.1	<0.3	<0.1

RealStable® NLM Series Dual-wavelength Narrow Linewidth Laser

784nm+785nm,785nm+1064nm

Optical Parameters
Center Wavelength (nm)	784/785	785/1064
Output Power (mW)	500/500	500/800
Wavelength Tolerance (nm)	±0.5 (each wavelength)
Linewidth, each wavelength (nm)	<0.1
Wavelength Stability	±7 pm @4h Typ.

RL-RP Series Raman Probe

532nm,785nm,830nm,1064nm

Part No.	RL-RP-532-(F/S)S	RL-RP-785-(F/S)S	RL-RP-830-(F/S)S	RL-RP-1064-(F/S)S
Center Wavelength（nm）	532	785	830	1064
Spectral Range（cm-1）	176-4000	176-3500	176-2800	200-3000
Operation Mode	Fiber pigtailed
Probe Dimensions（mm）	107x30x13

RL-HS Series Heat Sink

638nm,785nm,808nm,830nm,1064nm

Part Number	Parameters	Heat Dissipation
RL-HS-01	Thermal Consumption ＜10W @ambient temperature of 25℃	Passively
RL-HS-02	Thermal Consumption ＜30W @ambient temperature of 25℃	Actively
RL-HS-03	Thermal Consumption ＜5W @ambient temperature of 25℃	Passively

RealStable® GS16 Conduction-cooled Vertical Stacked Diode Laser Array

796nm,808nm,940nm

Center Wavelength λc（nm）	940	790-812
Wavelength Tolerance δλc（nm）	±5	±3
Output Power per Bar（W）	100	100	200
Number of Bars	1-2	1-5	1-3
Bar Length（mm）	10	10
Bar-to-Bar Pitch（mm）	0.8	0.43	0.55

RealStable® GS12 Conduction-cooled Vertical Stacked Diode Laser Array

796nm,808nm,940nm

Center Wavelength λc（nm）	940	790-812
Wavelength Tolerance δλc（nm）	±5	±3
Output Power per Bar（W）	100	100	200
Number of Bars	1-2	3-6	2-4
Bar Length（mm）	10	10
Bar-to-Bar Pitch（mm）	0.8	0.43	0.55

RealStable® GS15 Conduction-cooled Vertical Stacked Diode Laser Array

796nm,808nm,940nm

Center Wavelength λc（nm）	940	790-812
Wavelength Tolerance δλc（nm）	±5	±3
Output Power per Bar（W）	100	100	200
Number of Bars	1-2	5-12	5-10
Bar Length（mm）	10	10
Bar-to-Bar Pitch（mm）	0.8	0.43	0.55

RealStable® GS07 Conduction-cooled Diode Laser Array

796nm,808nm

Part Number	Rxxx±3-Qxxxx-GS07-5*15
Center Wavelength λc（nm）	796~808
Wavelength Tolerance δλc（nm）	±3
Output Power per Bar（W）	180
Number of Bars	1~15
Bar-to-Bar Pitch（mm）	~0.4

RealStable® GS06 Conduction-cooled Diode Laser Array

796nm,808nm

Part Number	Rxxx±5-Q1800-GS06-5*9
Center Wavelength λc（nm）	796~808
Wavelength Tolerance δλc（nm）	±5
Output Power per Bar（W）	200
Number of Bars	9
Bar-to-Bar Pitch（mm）	~0.6

RealStable® GS11 Conduction-cooled Vertical Stacked Diode Laser Array

808nm

Part Number	R808±10-Q480-GS11-10*4
Center Wavelength λc（nm）	808
Wavelength Tolerance δλc（nm）	±10
Output Power per Bar（W）	120
Number of Bars	4
Bar-to-Bar Pitch（mm）	1.65

RealStable® AA-2 Series Conduction-cooled Diode Laser Array

796nm,808nm

Center Wavelength λc（nm）	790-812
Wavelength Tolerance δλc（nm）	±3
Output Power per Bar（W）	100	200
Number of Bars per Stack	8	6
Bar-to-Bar Pitch（mm）	0.43	0.55
Emission Area（mm×mm）	3×21	2.75×21
Stack-to-Stack Pitch（mm）	1
Number of Stacks	2

RealStable® AA-3 Series Conduction-cooled Diode Laser Array

796nm,808nm

Center Wavelength λc（nm）	790-812
Wavelength Tolerance δλc（nm）	±3
Output Power per Bar（W）	100	200
Number of Bars per Stack	8	6
Bar-to-Bar Pitch（mm）	0.43	0.55
Emission Area（mm×mm）	3×32	2.75×32
Stack-to-Stack Pitch（mm）	1
Number of Stacks	3

RealStable® AA-4 Series Conduction-cooled Diode Laser Array

796nm,808nm

Center Wavelength λc（nm）	790-812
Wavelength Tolerance δλc（nm）	±3
Output Power per Bar（W）	100	200
Number of Bars per Stack	9	7
Bar-to-Bar Pitch（mm）	0.43	0.55
Emission Area（mm×mm）	3.5×43	3.3×43
Stack-to-Stack Pitch（mm）	1
Number of Stacks	4

RealStable® PA-1 Series Conduction Cooled Polygonal Diode Laser Array

796nm,808nm

Center Wavelength λc（nm）	790-812
Wavelength Tolerance δλc（nm）	±3
Output Power per Bar（W）	100	200
Number of Bars per Stack	1-4	1-3
Bar-to-Bar Pitch（mm）	0.43	0.55

RealStable® PA-2 Series Conduction Cooled Polygonal Diode Laser Array

796nm,808nm

Center Wavelength λc（nm）	790-812
Wavelength Tolerance δλc（nm）	±3
Output Power per Bar（W）	100	200
Number of Horizontal Arrays	2
Array-to-Array Pitch	3
Number of Bars per Stack	1-4	1-3
Bar-to-Bar Pitch（mm）	0.43	0.55

RealStable® PA-3 Series Conduction Cooled Polygonal Diode Laser Array

796nm,808nm

Center Wavelength λc（nm）	790-812
Wavelength Tolerance δλc（nm）	±3
Output Power per Bar（W）	100	200
Number of Horizontal Arrays	3
Array-to-Array Pitch	3
Number of Bars per Stack	1-4	1-3
Bar-to-Bar Pitch（mm）	0.43	0.55

Product Center

联系我们
