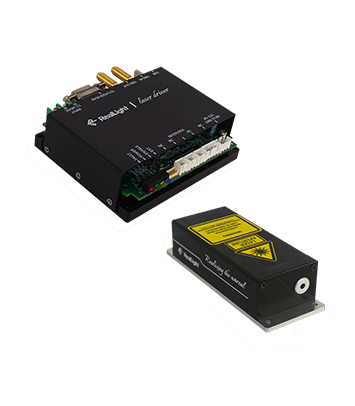

MC series microchip lasers are RealLight’s self-developed, passively Q-switched diode-pumped sub-nanosecond lasers, featuring narrow pulse width, high peak power high repetition rate and multiple wavelengths. RealLight provides these microchip lasers at 1535nm, 1319nm, 1064nm, 1030nm, 946nm, 660nm, 532nm, 515nm, 473nm, 355nm, 343nm, 266nm, 257nm, 237nm and 213nm output wavelengths, with repetition rates up to 100kHz and pulse width from 300ps to 5ns. These compact and easy-to-integrate diode-pumped solid state lasers support internal and external triggering, are ideally suited for eye-safe ranging, atmospheric monitoring, underwater imaging, optical metrology, bio-medicine, micro-machining,etc.
| Optical Parameters | ||
| Wavelength(nm) | 1064 | |
| Repetition rate(Hz) | 10 | |
| Pulse energy (mJ) | ＞10 | |
| Pulse width (ns) | ＜10 | |
| Optical Parameters | |||||||||||||||||
| Wavelength (nm) | 1064 | 532 | 355 | 266 | |||||||||||||
| Repetition rate (kHz) | 1 | 5 | 10 | 20 | 1 | 5 | 10 | 20 | 1* | 5* | 10* | 20* | 1* | 5* | 10* | 20* | |
| Average power (mW) | 120 | 300 | 400 | 400 | 60 | 150 | 150 | 200 | 30 | 50 | 50 | 60 | 15 | 40 | 30 | 40 | |
| Pulse energy (μJ) | 120 | 60 | 40 | 20 | 60 | 30 | 15 | 10 | 30 | 10 | 5 | 3 | 15 | 8 | 3 | 2 | |
| Pulse width (ps) | 2000 | 1500 | 1500 | 1200 | 1500 | 1200 | 1500 | 1200 | |||||||||
| Optical Parameters | |||||||
| Wavelength（nm） | 1064 | 532 | |||||
| Repetition rate (kHz) | 1* | 2.5 | 2.5* | 1* | 2.5 | 2.5* | |
| Average power (mW) | 200 | 300 | 500 | 100 | 150 | 250 | |
| Pulse energy (μJ) | 200 | 120 | 200 | 100 | 60 | 100 | |
| Pulse width (ps) | 2000 | 1500 | |||||
| Wavelength (nm) | 1064 | 532 | 355 | 266 | 213 | |||||||||
| Repetition rate (kHz) | 1 | 5 | 10 | 1 | 5 | 10 | 1* | 5* | 10* | 1* | 5* | 10* | 1* | |
| Average power (mW) | 100 | 300 | 300 | 50 | 150 | 150 | 20 | 50 | 50 | 10 | 40 | 40 | 4 | |
| Pulse energy (μJ) | 100 | 60 | 30 | 50 | 30 | 15 | 20 | 10 | 5 | 10 | 8 | 4 | 4 | |
| Pulse width (ps) | 750 | 700 | 650 | 650 | 650 | |||||||||
| Optical Parameters | |||||
| Wavelength（nm） | 1064 | ||||
| Repetition rate (kHz) | 0.01 | ||||
| Average power (mW) | 1.8 | 4 | 1.8 | 1.5 | |
| Pulse energy (μJ) | 180 | 400 | 180 | 150 | |
| Pulse width (ps) | 2000 | 500 | 500 | 300 | |
| Optical Parameters | |||||
| Wavelength (nm) | 1064 | 532 | 355 | 266 | |
| Repetition rate (kHz) | 1 | 1 | 1* | 1* | |
| Average power (mW) | 50 | 20 | 10 | 5 | |
| Pulse energy (μJ) | 50 | 20 | 10 | 5 | |
| Pulse width (ps) | 350 | 300 | 300 | 300 | |
| Optical Parameters | ||||
| Wavelength（nm） | 1064 | |||
| Repetition rate (kHz) | 10 | 20 | 10 | |
| Average power (mW) | 300 | 400 | 800 | |
| Pulse energy (μJ) | 30 | 20 | 80 | |
| Pulse width (ns) | 0.9 | 1.2 | 2 | |
| Optical Parameters | ||||
| Wavelength (nm) | 946 | 473 | 237 | |
| Repetition rate (kHz) | 1 | 1 | 1* | |
| Average power (mW) | 20 | 5 | 1* | |
| Pulse energy (μJ) | 20 | 5 | 2 | |
| Pulse width (ps) | 2500 | 2000 | 1500 | |
| Optical Parameters | |||||
| Wavelength (nm) | 1030 | 515 | 343 | 257 | |
| Repetition rate (kHz) | 1 | 1 | 1* | 1* | |
| Average power (mW) | 100 | 40 | 20 | 8 | |
| Pulse energy (μJ) | 100 | 40 | 20 | 8 | |
| Pulse width (ps) | 1000 | 900 | 800 | 800 | |
| Optical Parameters | |||
| Wavelength (nm) | 1319 | 660 | |
| Repetition rate (kHz) | 1* | 1* | |
| Average power (mW) | 50 | 10 | |
| Pulse energy (μJ) | 50 | 10 | |
| Pulse width (ps) | 2500 | 2000 | |
| Wavelength (nm) | 1064 | 532 | 355 | 266 | |
| Repetition rate (Hz) | 1-200 | ||||
| Max. energy @ Fiber coupled output (μJ) | 50 | 25 | 25 | 10 | |
| Pulse width (ns) | ≤1 | ||||
| Wavelength (nm) | 1064 | 532 | 355 | 266 | |
| Repetition rate (Hz) | 1-200 | ||||
| Max. energy @ Free space output (μJ) | 60 | 30 | 25 | 15 | |
| Pulse width (ns) | ≤1 | ||||
