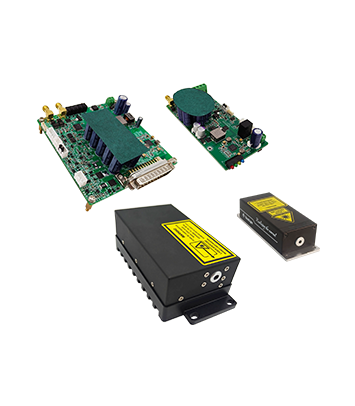

MCD series microchip lasers are RealLight’s passively Q-switched diode pumped solid-state lasers. These lasers are equipped with compact OEM drive circuits, featuring small size, easy integration, excellent beam quality, stable pulse energy, dual pulse width, etc. RealLight also provides isolators with corresponding wavelengths. Custom lasers with higher energy of 1-2mJ are available upon request.
RealSubns® MCD Series 350ps-2ns Low Repetition Rate OEM Microchip Laser
PRODUCT PARAMETERS
Optical Parameters | ||||
Wavelength(nm) | 1064 | |||
Repetition rate (kHz) | 0.01 | |||
Average power (mW) | 2 | 5 | 3/3 | |
Pulse energy (μJ) | 200 | 500 | 300/300 | |
Pulse width (ps) | 350 | 350 | 500/2000 | |
Power stabilty (8h) | ±3% | |||
Beam profile | TEM00 | |||
Beam full divergence (typ., mrad) | Horizontal @1/e² | 8 | 6 | 6/4 |
Vertical @1/e² | ||||
Polarization ratio | P Polarization >100:1 | 500ps:P Polarization >100:1 2ns:S Polarization >100:1 |
||
System Parameters | ||||
Supply power voltage | 12V 2A | |||
Control interface | SMA | |||
Power consumption (W) | ≤10 | |||
Power dimensions (W×H×L,mm) | 68×35×120 | 100×23×100 | ||
Laser head dimensions (W×H×L,mm) | 45×33×120 | 145×70×46 | ||
Operation temperature (℃) | 15~35 | |||
Storage temperature (℃) | 0~60 |
1. All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
APPLICATION
-
Medical cosmetology
-
Laser range finding
- Laser ablation
KEY FEATURES
-
Pulse width down to 350ps
/ -
Pulse energy up to 500μJ/
-
High polarization direction stability/
-
Spatial mode TEM00/
-
Compact structure and high reliability/
-
Dual pulse width output optional/
-
Red light indication optional/
