The T02 series is an integrated laser transmitter consisting of a diode-pumped passively Q-switched Erbium glass laser independently developed by RealLight, a transmitting antenna, and a photodiode. The laser module operates at the eye-safe wavelength of 1535nm and can synchronize the laser pulse signal. The transmitter has the characteristics of small size, small divergence angle, and wide temperature range operation. It is professionally used in LIDAR, laser range finding, laser remote sensing and other fields.

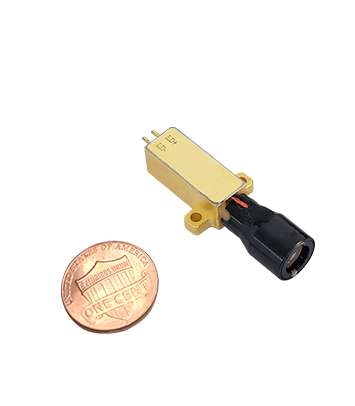

T02 Series Eye-safe Laser Transmitter
PRODUCT PARAMETERS
| Wavelength ( nm ) | 1535 | |
| Repetition rate (Hz) | 10 | |
| Pulse energy of the laser (μJ) | >100 | >200 |
| Transmitter transmittance | >90% | |
| Pulse width (ns) | <5 | |
| Operating current (A) | 8 | 10 |
| Beam full divergence (mrad) | <0.8 | |
| Beam diameter (typ., mm) | 5 | |
| Beam profile | TEM00 | |
| Energy Stability (RMS) | 3% | |
| PIN amplitude (typ., V@50Ω resistance) | 3 | |
| Weight (g) | 11 | |
| Operation temperature (℃) | -40~65 | |
| Storage temperature (℃) | -45~80 | |
All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
APPLICATION
-
Laser range finding
-
Remote sensing
- LiDAR
KEY FEATURES
-
Eye-safe laser wavelength
/ -
Integrated photodiode/
-
Small divergence angle/
-
Super compact design/
-
High reliability/
