RealLight’s AW series multi-function diode lasers provide single-wavelength or multi-wavelength versions with fiber pigtailed output and detachable output. These lasers are equipped with TE cooler, photodiode,thermistor, aiming beam, and fiber detector. The high power configuration provides replacable window.The AW series delivers output wavelengths at 1064nm, 980nm,976nm, 940nm, 915nm, 808nm, 650nm, 638nm, 520nm, 450nm, 405nm, and powers range from 10mW to 45W, are suitable for applications like laser therapy, dentistry, veterinary medicine, PCB manufacturing, aiming beam, pumping,laser processing, etc. Package options include fiber array and fiber bundle are available to address special needs.

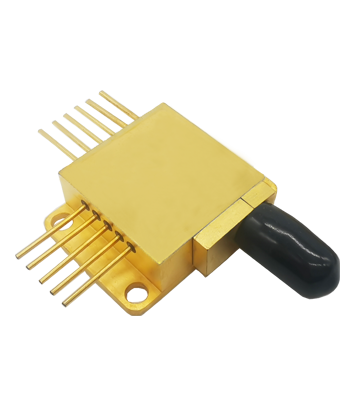

| Package Type | 11RTR | ||||
| Center Wavelength（nm） | 808 | 9XX | 1064 | ||
| Optical | CW Output Power / Pop (W) | 9 | 10 | 20 | 10 |
| Wavelength Tolerance (nm) | ±3，±10 | ||||
| Spectral Width / △λ (nm) | ＜4 | ||||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.3 | ||||

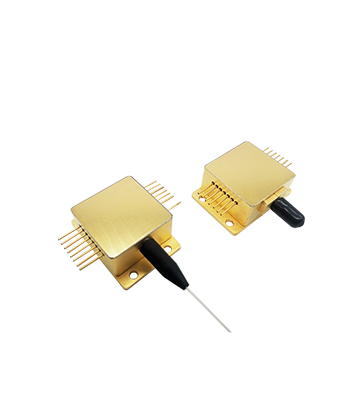

| Package Type | 14HHL | 15HHL | |||||||||
| Center Wavelength（nm） | 450 | 808 | 9XX | 1064 | 450 | 808 | 9XX | 1064 | |||
| Optical | CW Output Power / Pop (W) | 4 | 9 | 10 | 20 | 10 | 4 | 9 | 10 | 20 | 10 |
| Wavelength Tolerance (nm) | ±3，±10 | ||||||||||
| Spectral Width / △λ (nm) | ＜4 | ||||||||||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.3 | ||||||||||

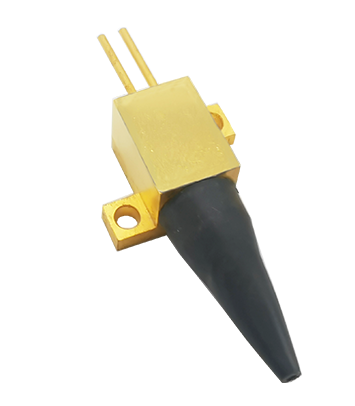

| Package Type | 02HBCK Fiber Pigtailed |
|||
| Center Wavelength（nm） | 808 | 9XX | 1064 | |
| Optical | CW Output Power / Pop（W） | 8 | 10 | 10 |
| Wavelength Tolerance (nm) | ±3,±10 | |||
| Spectral Width / △λ (nm) | <4 | |||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.3 | |||
| Optional Feedback Protection Function | >40dB@1030-1070nm | |||
| Fiber Core/Cladding Diameter Dcore（μm） | 105/125,200/220 | |||
| Fiber Length / L (cm) | 100±10（customizable） | |||
| Numerical Aperture / NA | 0.22 | |||
| Connector | FC/PC,SMA905, bare ferrule | |||
| Package Type | 09HHL-T （Free Space） |
09HHL-T （Fiber Pigtailed） |
09HHL-TG （Narrow Linewidth） |
|||||||
| Center Wavelength（nm） | 808 | 450 | 638 | 808 | 9XX | 1064 | 808 | 976 | ||
| Optical | CW Output Power / Pop (W) | 3 | 10 | 4 | 1 | 8.5 | 15 | 10 | 6 | 9 |
| Wavelength Tolerance (nm) | ±3,±10 | ±0.5 | ||||||||
| Spectral Width / △λ (nm) | ＜4 | ＜0.3 | ||||||||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.3 | 0.01 | ||||||||
| Center Wavelength（nm） | 405 | 450 | 520 | |
| Optical | CW Output Power / Pop (mW) | 100 | 100 | 100 |
| Wavelength Tolerance (nm) | ±5 | ±10 | ±10 | |
| Spectral Width / △λ (nm) | ＜2 | ＜2 | ＜3 | |
| Center Wavelength（nm） | 520 | 638 | 650 | |||
| Optical | CW Output Power / Pop (mW)(1) | 2~10 | 60 | 150 | 130 | 2~10 |
| Wavelength Tolerance (nm) | ±10 | |||||
| Spectral Width / △λ (nm) | ＜6 | |||||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.3 | |||||

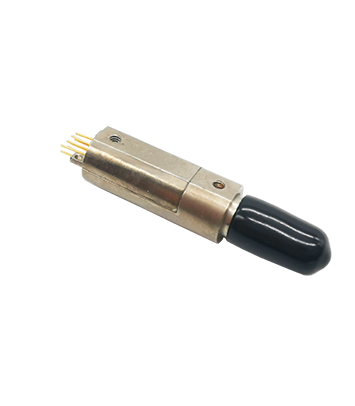

| Package Type | 08BULT | ||
| Center Wavelength（nm） | 808 | 980 | |
| Optical | CW Output Power / Pop (W) | 2 | 3 |
| Wavelength Tolerance (nm) | ±10 | ||
| Spectral Width / △λ (nm) | ＜6 | ||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.3 | ||
| Package Type | 06LB-G | 06LB-P | |||
| Center Wavelength（nm） | 808 | 976 | 808 | 980 | |
| Optical | CW Output Power / Pop（W） | 6 | 9 | 2 | 5 |
| Wavelength Tolerance (nm) | ±0.5 | ±10 | |||
| Spectral Width / △λ (nm) | <0.5 | <6 | |||
| Temperature Drift of Wavelength / △λ/△T (nm/℃) | 0.01 | 0.3 | |||
| Feedback Protection (dB) (1030-1100nm) | – | – | |||
| Center Wavelength (nm) | 405 | 450 | 520 | 638 | 650 |
| Wavelength Tolerance (nm) | ±5 | ±10 | ±10 | ±10 | ±10 |
| Output Power (mW) | 100 | 100 | 100 | 100 | 100 |
| Linewidth (nm) | <3 | ||||
| Output Fiber | 105/0.22 | ||||
| Optical Parameters | |||||
| Center Wavelength (nm) | 405 | 450 | 520 | 638 | 650 |
| Wavelength Tolerance (nm) | ±5 | ±10 | ±10 | ±10 | ±10 |
| Output Power (mW) | 100 | 100 | 100 | 100 | 100 |
| Linewidth (nm) | ＜2 | ＜2 | ＜3 | ＜3 | ＜3 |
| Output Fiber（μm/NA） | 105/0.22 | ||||
