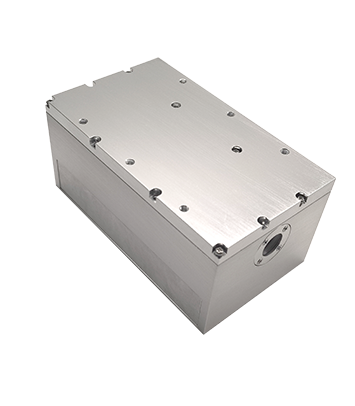

The high energy solid-state lasers independently developed, designed, and manufactured by Reallight, include Flash Lamp Pumped (MOPA) Picosecond Laser and Nanosecond Lamp Pumped Electro-optical Q-switched Laser, both of them are using xenon lamp as pumping source, which feature large energy and high peak power. These MOPA lasers are combined with RealLights’s self-developed MCD series of sub-nanosecond microchip lasers at 300ps-2ns as seed sources, and other components like RL-ISO series isolator and RL-ROT series rotator.They are cost-effective and widely used in medical aesthetics, material analysis, radar ranging, laser processing and other fields.

Part Number HQF-1064/532-10-350-500/300-P HQF-1064/532-10-500-350/200-P
Repetition rate(Hz) 1~10 1~10
Pulse energy(mJ)
1064nm 500 350
532nm 300 200
Energy stability RMS
1064nm <2%
532nm <3%
Part Number HQF-1064/532-10-6-800/400-N HQF-1064/532-10-6-1200/600-N
Repetition rate(Hz) 1~10
Pulse energy(mJ)
1064nm 800 1200
532nm 400 600
Energy stability RMS
1064nm <2%
532nm <3%
Parameters of the articulated arm
Aperture Φ17
Total Length 1.67m
Number of joints 7 Joint unit



Parameters of the power supply and control board for 500ps laser
Input voltage 220V±10%AC, 50~60Hz
Maximum output power 1000W
Maximum output voltage 1000V



Parameters of the power supply and control  screen for 350ps laser
Input voltage 220V±15%AC, 50~60Hz
Maximum output power 1000W
Maximum output voltage 1000V
Parameters of the articulated arm
Aperture Φ17
Total Length 1.7m
Number of joints 7 Joint unit



Parameters of the power supply
Input voltage 220V/110V±10%AC, 50~60Hz
Maximum output power 1000W
Maximum output voltage 1000V



Parameters of the control screen & control board
Control screen size 8 inches or 10 inches
Control board size 150*110mm
