Linewidth < 0.1nm

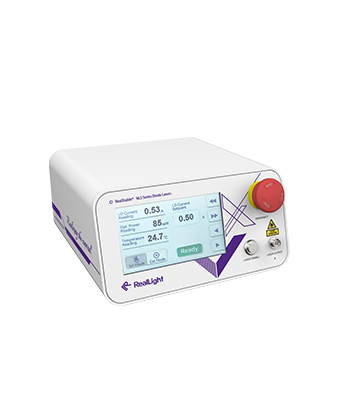

RealStable® NLS Series Single mode Narrow Linewidth Laser
PRODUCT PARAMETERS
| Optical Parameters | |||||||
| Center Wavelength (nm) | 405 | 450 | 520 | 638 | 650 | 785 | 1064 |
| Output Power (mW) | 100 | 100 | 100 | 100 | 100 | 100 | 300 |
| Wavelength Tolerance (nm) | ±5 | ±10 | ±0.5 | ||||
| Linewidth (nm) | <3 | <0.1 | |||||
| Wavelength Stability | ±7pm@4h typ. | ||||||
| Power Stability | ±2% @ 4h typ. | ||||||
| SMSR | – | 35-45 | |||||
| System Parameters | |||||||
| Adjustbility % Full Power | 0~100% | ||||||
| Warm up Time (min) | 15 | ||||||
| Modulation Input | Analog signal 100Hz | ||||||
| Control Interface | USB , BNC | ||||||
| Connector | SMA905 , FC/PC | ||||||
| Output Fiber | 105 μm , 0.22 NA | ||||||
| Supply Voltage | 5VDC/2A | ||||||
| Power Consumption | <7 W typ. | ||||||
| Storage Humidity | 10~60 | ||||||
| Storage Temperature (℃) | 0~70% RH | ||||||
| Operating Temperature (℃) | 10~35 | ||||||
| Weight (kg) | 1.2 | ||||||
| Dimensions (mm) | 180×90×180 | ||||||
All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
APPLICATION
-
Raman spectroscopy
-
Laser-induced fluorescence
- Pumping source
KEY FEATURES
-
/
-
Excellent wavelength stability ±7pm@4h/
-
SMSR is better than 40dB/
-
Built-in TEC, power stability ±2%/
-
Contains PC control, emergency stop button,/
-
short circuit protection functions/
-
Raman analysis software available/
