Power stability < ±2%

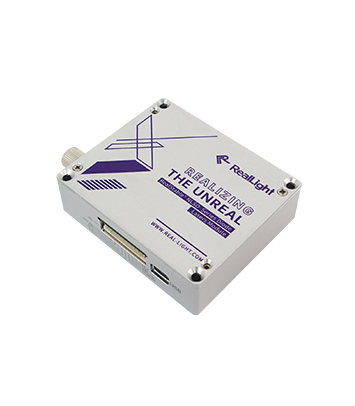

RealStable® NLSO Series Single Mode Narrow Linewidth Laser
PRODUCT PARAMETERS
| Optical Parameters | |||||||
| Center Wavelength (nm) | 405 | 450 | 520 | 638 | 650 | 785 | 1064 |
| Output Power (mW) | 100 | 100 | 100 | 100 | 100 | 100 | 300 |
| Wavelength Tolerance (nm) | ±5 | ±10 | ±0.5 | ||||
| Linewidth (nm) | <2 | <2 | <3 | <3 | <3 | <0.1 | |
| Power Stability | ±2% @4h typ. | ||||||
| Output Fiber (μm/NA) | 105/0.22 | – | |||||
| Connector | FC/PC , SMA905 | – | |||||
| Wavelength Stability | – | ±7pm@4h typ. | |||||
| SMSR (dB) | – | 35-45 | |||||
| System Parameters | |||||||
| Adjustbility % Full Power | 0~100% | ||||||
| Warm up Time (min) | 15 | ||||||
| Control Interface | PH2.0-10P , USB | ||||||
| Supply Voltage | 5VDC/2A | ||||||
| Power Consumption | <5W typ. | ||||||
| Storage Humidity | 0~70% RH | ||||||
| Storage Temperature (℃) | -10~60 | ||||||
| Operating Temperature (℃) | 10~35 (heat sink is required) | ||||||
| Weight (g) | <150 | ||||||
| Dimensions (mm) | 76.2×63.5×22 | ||||||
All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
APPLICATION
-
Raman spectroscopy
- Laser-induced fluorescence
-
Laser-induced fluorescence (LIF)
-
Particle size analysis
-
Flow cytometer
-
Confocal microscopy
-
Laser holography
- Laser indicator
KEY FEATURES
-
/
-
Low power consumption, typical < 5W/
-
Compact design, easily integrated/
